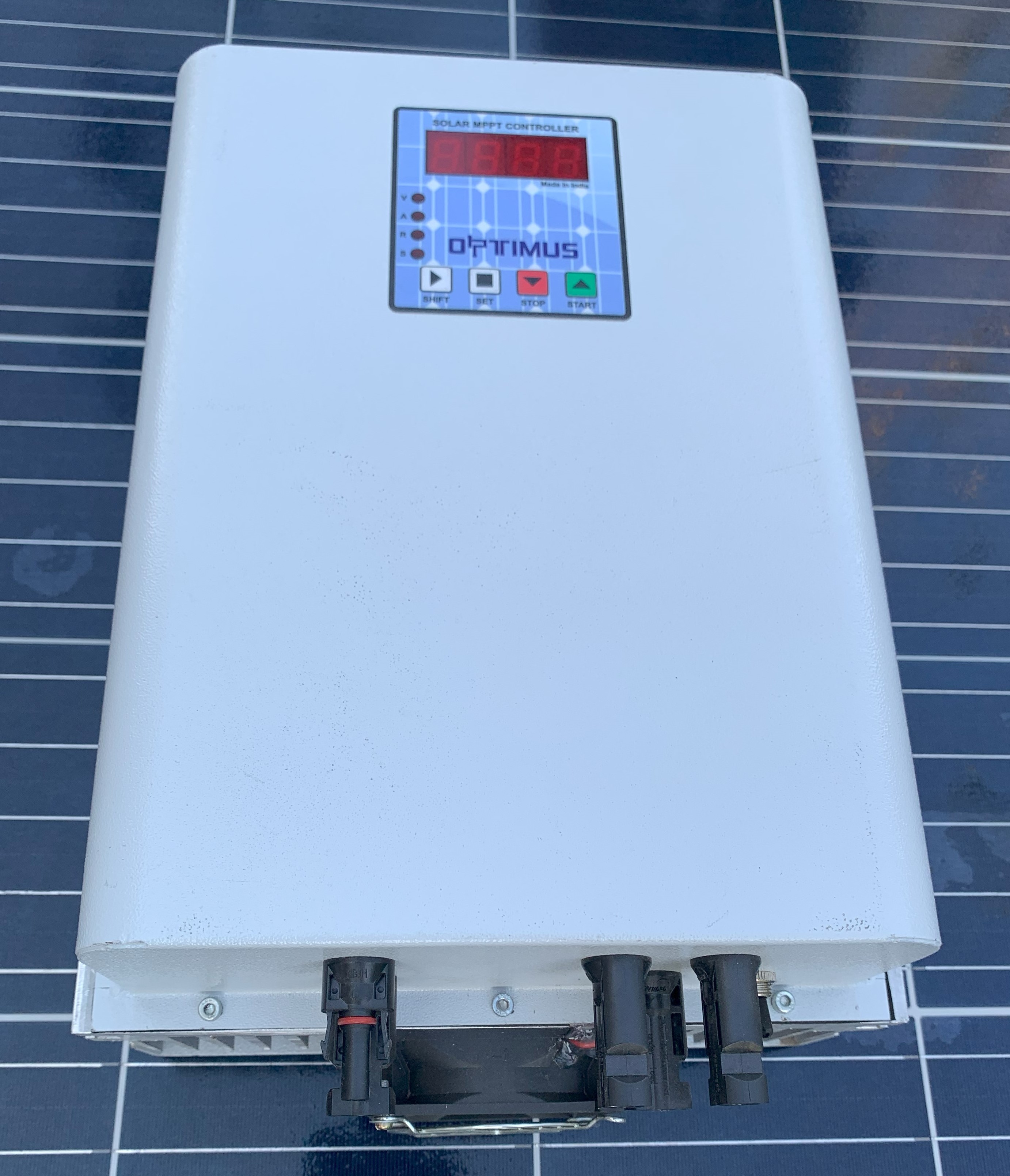

Optimus Solar Pump MPPT Controller

Prime Electronics Solar pump MPPT Drive is a high efficiency controller, designed & made in India.

The Drive is available in the following models*: 1HP, 2HP, 5HP, 7.5HP, 10HP drives for PMSM (Permanent Magnet Synchronous Motor) and ACIM (Asynchronous Induction Motor)

FEATURES & BENEFITS

Easy configuration for a class of motor types.
Reducing on field installation complexity.
Better Pump Output Per Available Solar Watts.
Pump starts earlier in the day and can run even in low Solar power.
Ability to add more Panels if required.
Motor drive limits output safely to rating of motor.
Supports remote monitoring, remote access and control and over-the-air firmware upgrade.
Extensive protection and monitoring of various parameters of operation.
Increased reliability, protects motor and drive from catastrophic failures.
IP65 enclosure.

ADVANCED MOTOR CONTROL

High efficiency with advanced hybrid motor control.
Synchronous Drive control.
Minimal reactive power consumption resulting in higher efficiency.
Higher efficiency across the range of Motor speed and Pump Output Head.

BETTER PUMP OUTPUTS PER AVAILABLE SOLAR WATTS

Higher efficiency and better MPPT tracking.
Higher motor RPM possible at a given available Power compared to alternate drives.
The Pump starts earlier in the day and delivers longer.
The Drive helps to run motor in cloudy condition

OVER SIZING ARRAY WILL NOT AFFECT DRIVE

Possible to Oversize array if desired.
Prime Electronics Drive will safely limit the output power as per the Motor’s limit.
Drive will limit maximum current to the motor as per configured value.

EXTENSIVE PROTECTIONS PREVENT CATASTROPHIC MOTOR FAILURES

The drives incorporate Smart protection for higher reliability and long operational life.
Short Circuit / Inter-Phase fault of Motor.
Phase Open - PV reverse - PV short
Dry run detection and stopping of motor.
Pump clogging and high torque current drawn.
High temperature auto cut off.
Tank Full sensors connection.
